Infrastructure

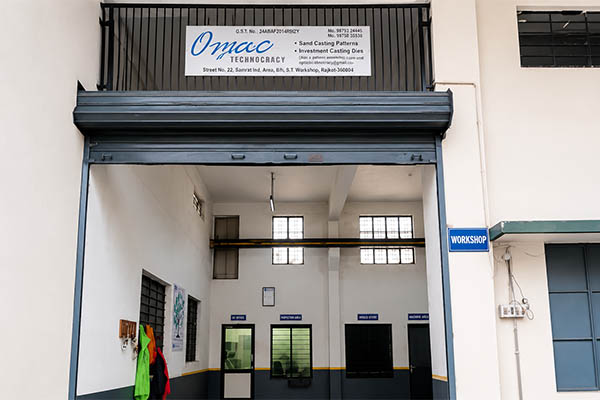

Our infrastructure is equipped with advanced engineering and manufacturing facilities to deliver precision foundry pattern solutions with high efficiency and quality standards. With a 4000 sq. ft. manufacturing facility, Siemens NX CAD software (2 licenses), PowerMill CAM software (1 license), and a production capacity of approximately 15 patterns per month depending on size and complexity, we ensure accurate design, efficient machining, and reliable production for diverse industrial applications.

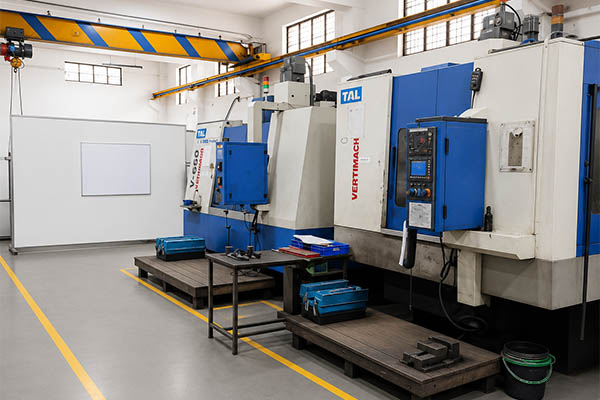

Infrastructure – CNC Machines and Specification



KTM DCMC 2516 ( 1 No. )



Machine Capacity:

• Travel X =2500mm, Y=1600mm, Z =800 mm
• Distance from spindle face to table top : 200mm
• System controller : Mitsubishi M80 VA


Chakra BMV 60TC24 VMC ( 1 No. )



Machine Capacity:

• Travel X =2500mm, Y=1600mm, Z =800 mm
• Distance from spindle face to table top : 200mm
• System controller : Mitsubishi M80 VA

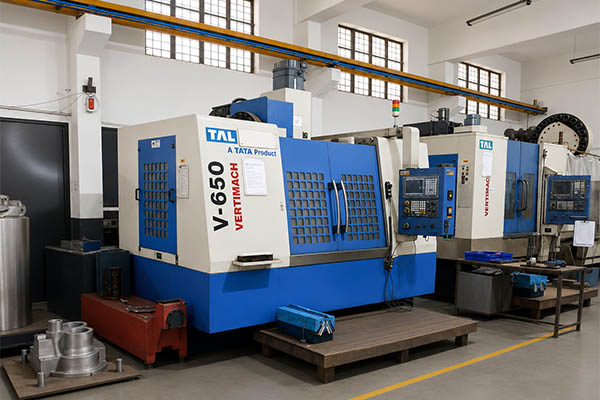

sTAL V-650 VMC ( 1 No. )



Machine Capacity:

Travel X =1020mm, Y=660mm, Z =1020 mm
• Distance from spindle face to table top : 150mm
• System controller : Mitsubishi M70



TAL V-400 VMC ( 1 No. )



Machine Capacity:

• Travel X =610mm, Y=510mm, Z =400 mm
• Distance from spindle face to table top : 150mm
• System controller : Siemens




 ROUTER RTP-2532 ( 1 No. )



Machine Capacity:

• Travel X =2500mm, Y=3200mm, Z =650 mm
• Distance from spindle face to table top : 150mm
• System controller : NK280B cnc controller

Infrastructure – Conventional Machines



 Medium Duty Lathe ( 1 No. )



Machine Capacity:

• Chuck Dia. = 200mm, Length=500 mm



 Pillar Drill Machine ( 1 No. )



Machine Capacity:

• Chuck Dia. = 1 Inch


Instruments



 Vernier Callipers



Up to 1000mm Length






 Micrometer



Up to 100mm Length






 Other



All gauges and Thickness Calipers required to measure Dies & Molds, Patterns and General Engineering Component
